Key features

• Caliber fit: Designed as a 7.62x54R cartridge-style bore sighter for quick chamber insertion.

• Solid brass body: Durable, corrosion-resistant housing ensures consistent, repeatable alignment.

• Precision laser module: Shock-proof laser provides a stable reference for fast sighting.

• Visible red laser: Dual-wavelength capability — 645 nm / 632 nm for clear dot visibility.

• Low power & safe: Output < 5 mW (Class IIIA).

• Ready to use: Batteries included — insert and go.

• Range: Minimum 15 yd, maximum 100 yd for effective initial sighting.

Short description

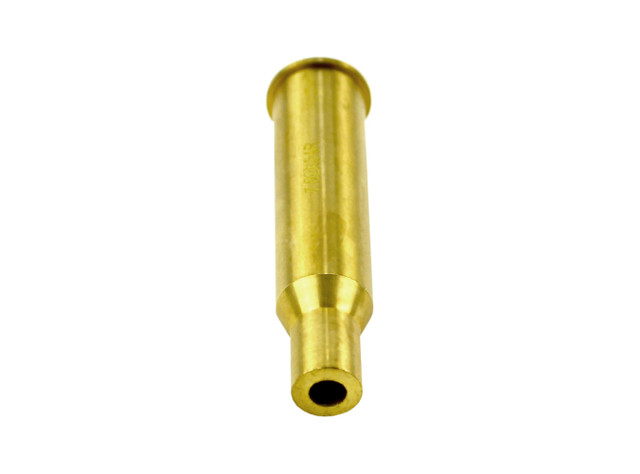

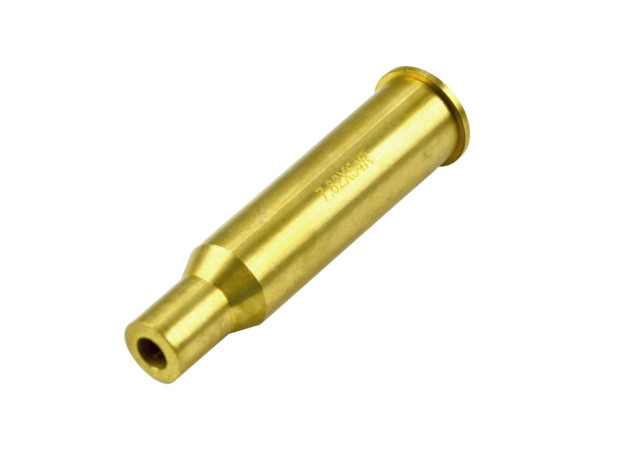

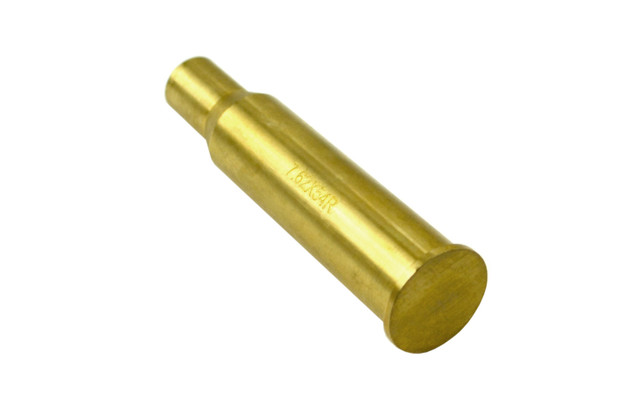

This 7.62x54R cartridge-style red laser bore sighter slips into the chamber like a cartridge and projects a precise red dot aligned to the bore axis. Housed in solid brass with a shock-proof precision laser module, it helps you “get on paper” quickly so you can make coarse adjustments to scopes or sights before live-fire fine tuning.

How to use (quick)

1. Confirm the firearm is unloaded and pointed in a safe direction.

2. Install batteries if not already installed and close the cap to power the unit.

3. Insert the bore sighter into the chamber and gently close the action (do not chamber like a live round).

4. Place a target between 15–100 yd (25 yd recommended to get on paper).

5. Adjust windage and elevation of your scope or sights until the point-of-aim matches the laser dot.

6. Remove the sighter and perform live-fire confirmation and final tuning.

Safety & care

• Do not look directly into the laser or point it at people, animals, or reflective surfaces.

• Even low-power lasers can cause eye injury; avoid direct or prolonged exposure.

• Keep out of reach of children.

• Remove batteries for long-term storage to prevent leakage.

• Follow all local laws and range regulations.

Package contents

• 7.62x54R cartridge-style red laser bore sighter (brass) ×1

• Battery set (installed) ×1
