Tubeless design with Reflex lens Aperture provides a wide field of view, suitable for rapid-firing or shooting of moving targets besides normal shooting
Multi-reticle (4 patterns) or variable dot (4 different sizes) are installed£ºCircle Dot, Cross, 10 MOA & 3 MOA(Red and green illuminated) All in one sight!
Built-in mount for standard bases, no need to rezero when remounting the dismounted sight
Parallax corrected & unlimited eye-relief; Allen head screw type windage and elevation click adjustments, with locking screw
Ultralight, waterproof and shockproof – powered one 3V Lithium Battery (included)
Mounting:
Your E/D sight includes an integrated rail that fits standard, dovetailed bases.
This is suitable for most applications.
Because of unlimited eye-relief with the E/D sight, you should provide at least three inches of clearance between the end ofLed & Mirror Housing and your eye when shooting.
Set the rail onto the base so that the rail claw aligns with the crosscut grooves. Work the claw into the base until the cross-bolt seats into the groove.
Securely tighten the locking screw with an Allen wrench included in the E/D sight.
Zeroing:
Select the reticle you desire by turning the reticle selector knob and set the intensity at the best position for you.
With the E/D sight mounted, rest the gun on a solid support and aim at a target 50 to 100 yards (or meter) away.
Test shots should be done in the same conditions to achieve maximum accuracy for adjustment, for which the use of firm rest for firing and same type cartridge is recommendable.
Each click adjustment moves the point of impact by 1 MOA (approximately 1″± at 100 vbs, 1/2″± at 20 yards)
-Package size: 4.5 x 3 x 2.8 inch

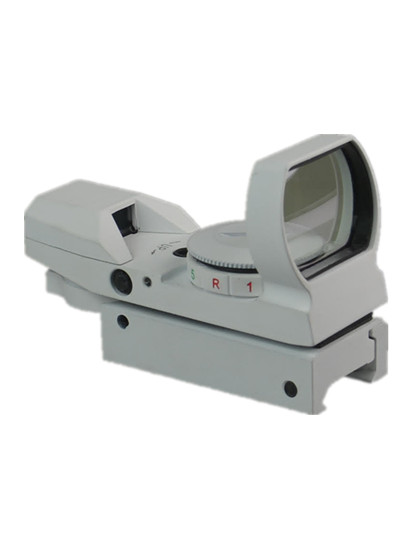

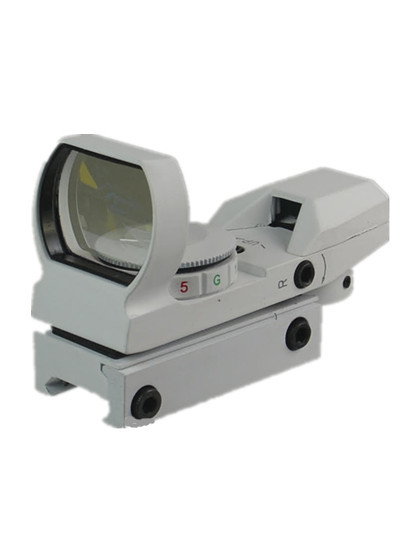

White Color Body
Additional Information
Weight | 1 lbs |
---|---|
Color | White |
Firearm | AR-15, AR-10, Ruger, SKS, AK, Glock, Shotgun |
Material | Aluminum |
Product Categories | Dot Sights |
Rail Type | Picatinny/Weaver |
