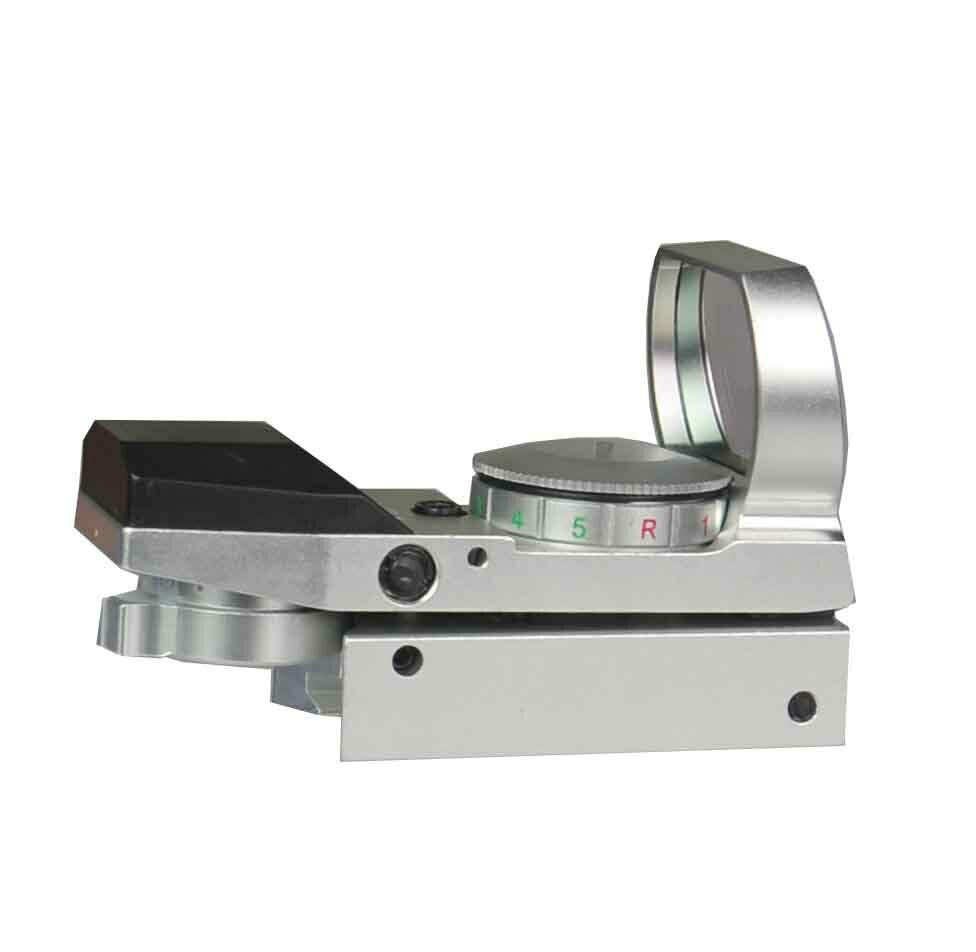

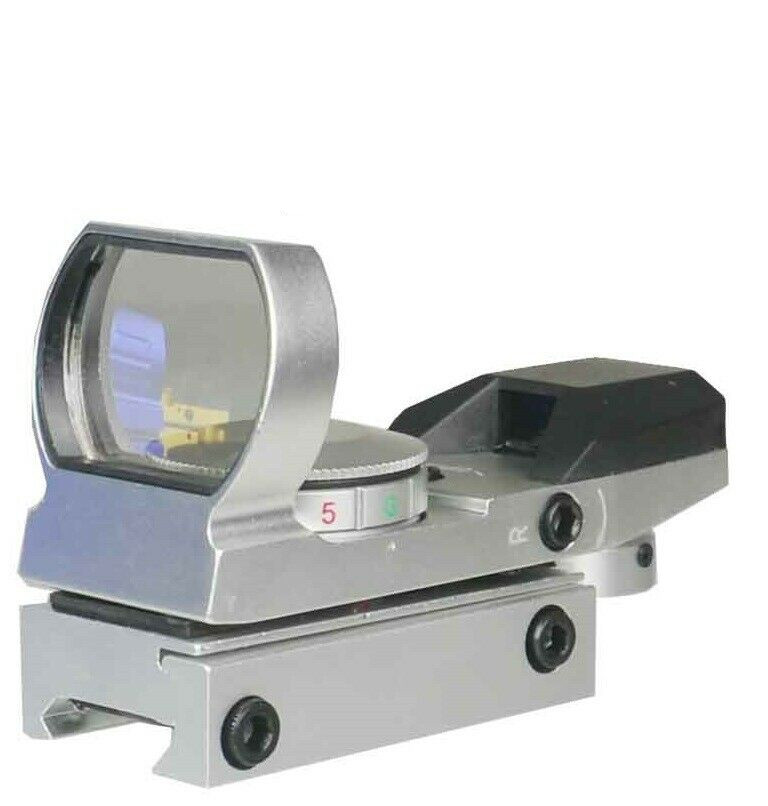

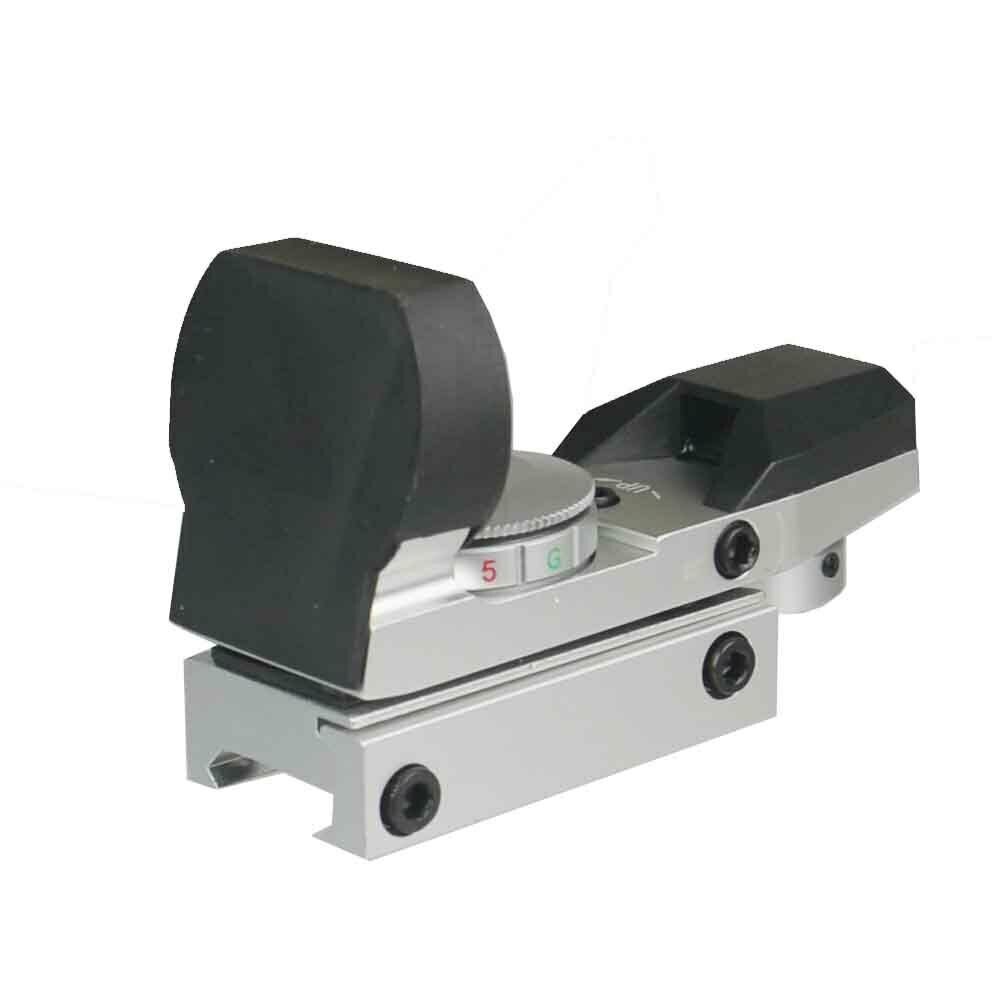

PRODUCT DESCRIPTION

The DB TAC Holographic Reflex Sight features a tubeless open design with a 33mm objective aperture, providing a wide field of view for fast target acquisition and moving-target shooting.

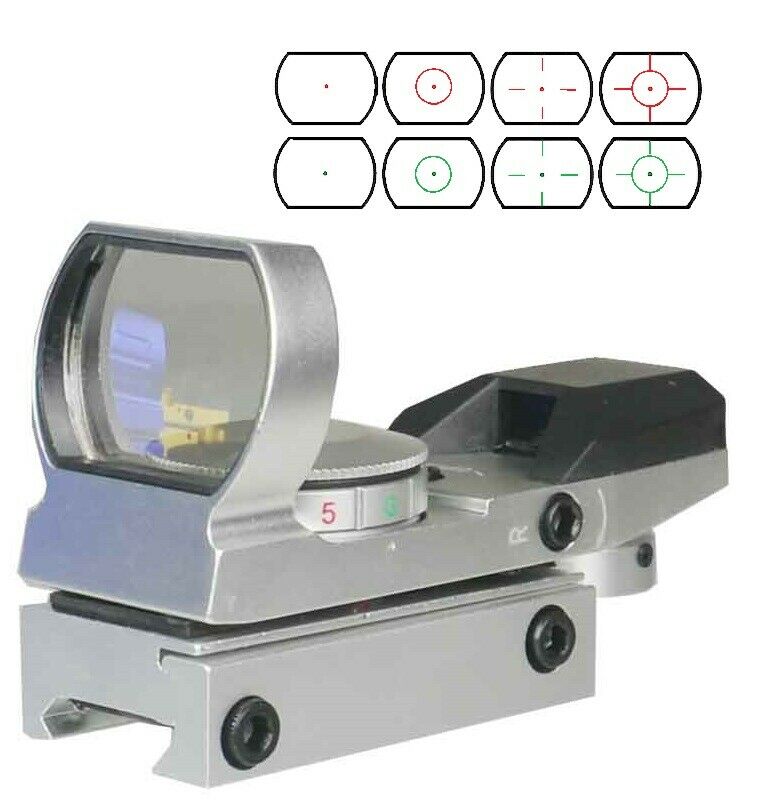

This sight offers both red and green illumination with four selectable reticle patterns, allowing you to choose the reticle and brightness setting that best suits your shooting conditions.

The integrated mounting system fits compatible standard Picatinny / Weaver rails. Its unlimited eye relief and parallax-corrected design provide flexible viewing and positioning.

Finished with a distinctive Silver Color Body for a clean, modern appearance.

FEATURES

• Red and green illuminated reflex sight
• 4 selectable reticle patterns
• Tubeless open reflex design
• 33mm objective aperture
• Wide field of view
• Unlimited eye relief
• Parallax corrected
• Windage and elevation adjustments
• 1 MOA per click adjustment
• Integrated Picatinny / Weaver rail mount
• Lightweight construction
• Waterproof and shockproof
• Silver color body
• Powered by one 3V lithium battery
• Battery included
• Allen wrench included

MOUNTING

The sight features an integrated rail mount designed for compatible Picatinny / Weaver bases.

Position the sight on the rail so the mounting cross-bolt aligns with the appropriate rail groove. Make sure the mount is properly seated, then securely tighten the locking screw using the included Allen wrench.

ZEROING

Select your preferred reticle and adjust the illumination intensity to a comfortable level.

For zeroing, place the firearm on a stable support and aim at a suitable target. Use consistent ammunition and shooting conditions during adjustment for best results.

Windage and elevation are adjustable using the Allen-head adjustment screws.

• Adjustment Value: 1 MOA per click
• Approximately 1″ movement at 100 yards per click

After adjustment, make sure all locking screws are properly secured.

PACKAGE INCLUDES

• 1 × DB TAC Silver Reflex Sight
• 1 × 3V Lithium Battery
• 1 × Allen Wrench
